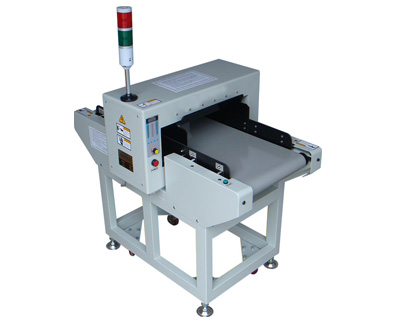

HD 380CE Needle Detector



Usage:
HD-380CE is specially used to detect the broken needle in sports shoes, leisure shoes and accessories of shoes on the production line

Specifications :
Detecting method: magnetic induction
Detecting ability: iron ball φ1.2mm
Sensitivity adjustment: 10 level
Detecting Width: 380 mm
Detecting height: 160 mm
Alarm type: buzzer
Belt speed: (appr.)20 m/min
Power supply: Single phase, 220V,50HZ
Rated Output: (appr.) 90W
Dimension: (L x W x H)1140X690X900mm
Weight: (appr.)120kg





Features:
1. The machine has the anti-interference function by adopting the latest anti-interference technology
2. The machine can calculate the amount of qualified products, unqualified products and the total amount of products
3. The machine can detect the big or small objects separately.
4. The machine has the device to prevent the belt running off which can be length the belt life
5. The machine has the automatic startup device,so it no need to press the start button frequently
6. The machine designed with the concept of environmental protection to saving the electricity automatically
7. The machine has the indiicator for environmental monitoring and finding the location of broken needles
8. The machine alarmed by the buzzer and flashing lamp
9. Due to Small size and light weight, the machine can be put to any position in the shoes production line
